| ThorX7 打標軟件英文版安裝說明 |
|
| 時間：2020-09-09 09:34:41 來源： 作者： |
|
|
Step 1 double click it.and open the file”ThorX7 Net.”
You will get three file.
Step 2 double click “TxSetup7.exe”
You will get below pic.

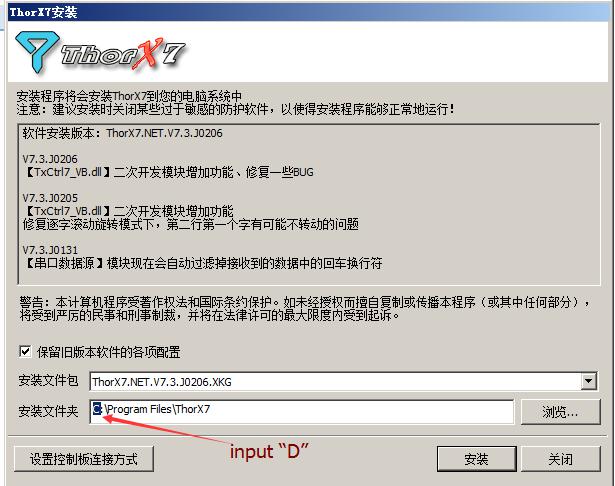

Step 3,input”D”,install the software to D dish.

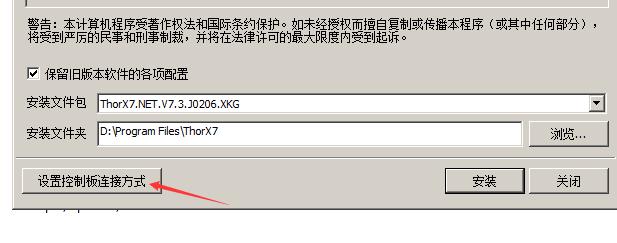

Step 4,click “設置控制板鏈接方式”(Set control board link)，you will get below pic.

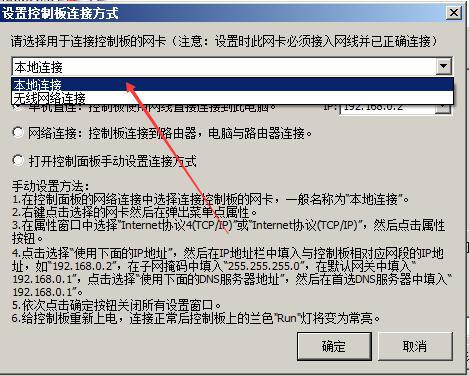

Step 5,choose “本地鏈接”，IT’s mean “Local link”.

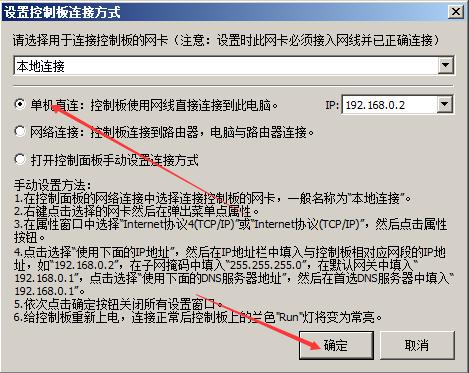

Step6,choose”單機直連”，（Direct connection），then click “確定”，(Enter).

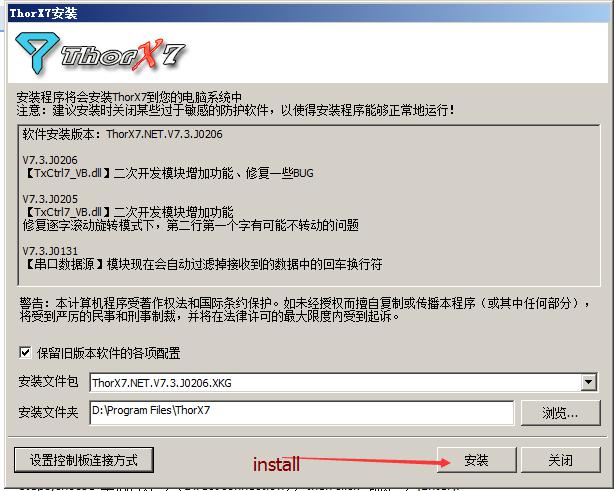

Step 7,install it.

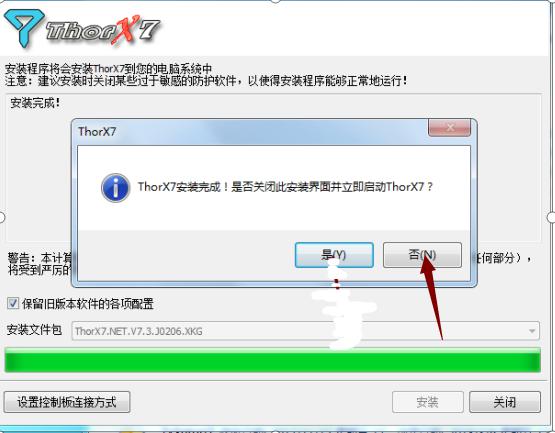

Step8,click“No”.

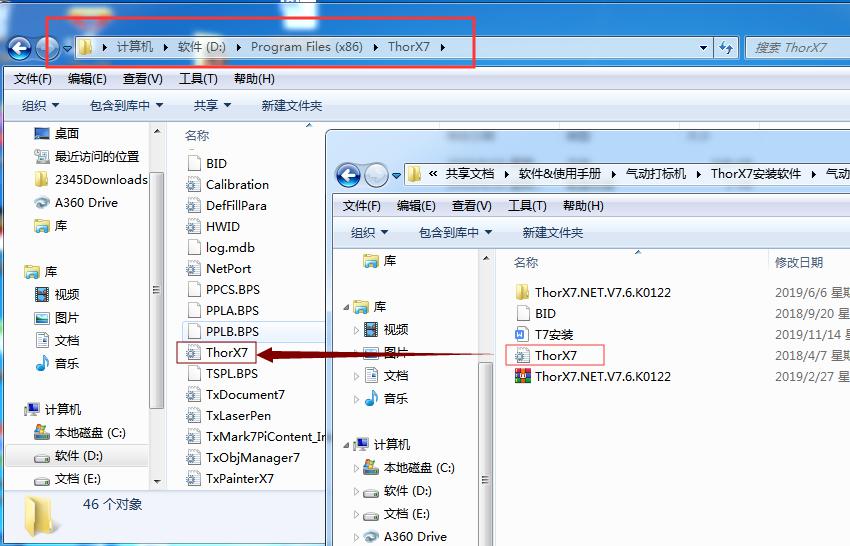

Step9,the left side file”ThorX7” is the install file in our D disk Thorx7 install file bag. Right side file “ThorX7” we sent you with the software, it is English language file. Use it repalce the left side install file, then open softare from desktop.you will get English software.

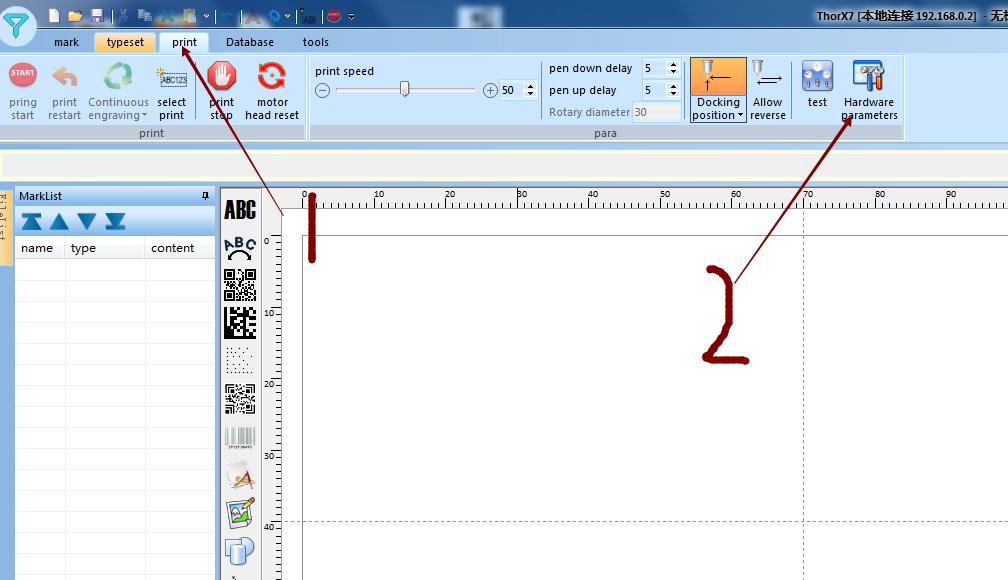

Step 10,according it to open hardware parameter.

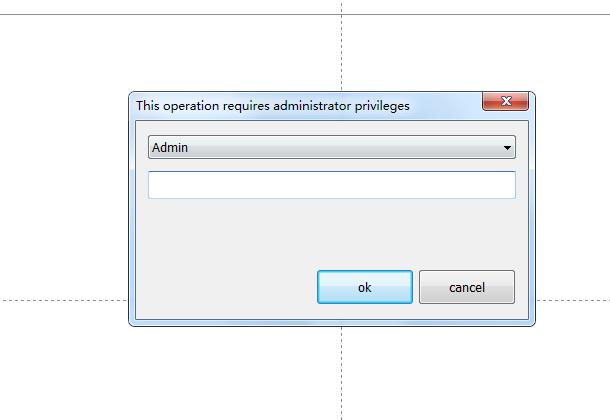

Step 10,input password:888888,and click “OK”

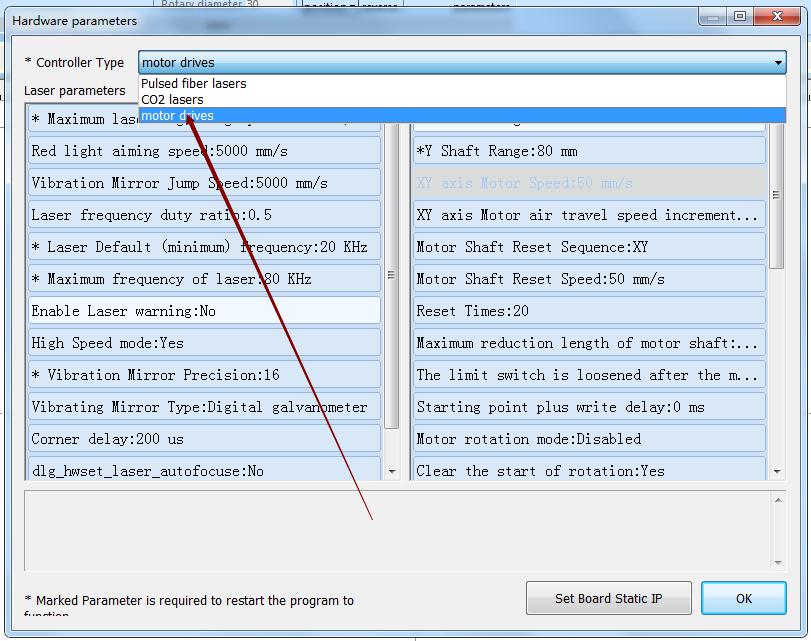

Step 11,choose motor drivers,then click “OK”

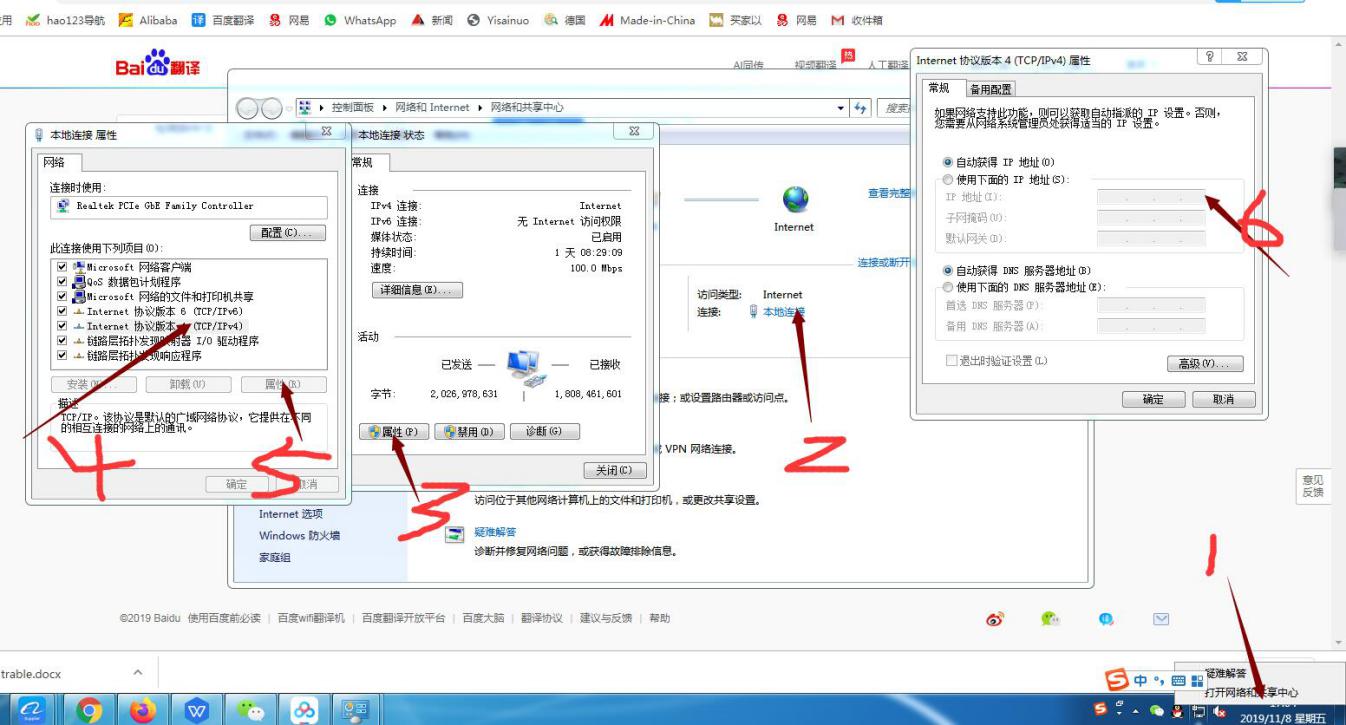

Step12,Change the IP address in IPv4 in network sharing. The original default IP address is  192.168.0.2. You can change it to  192.168.0.3. In short, you only need to change any number. The picture below guides you to find the IP address.

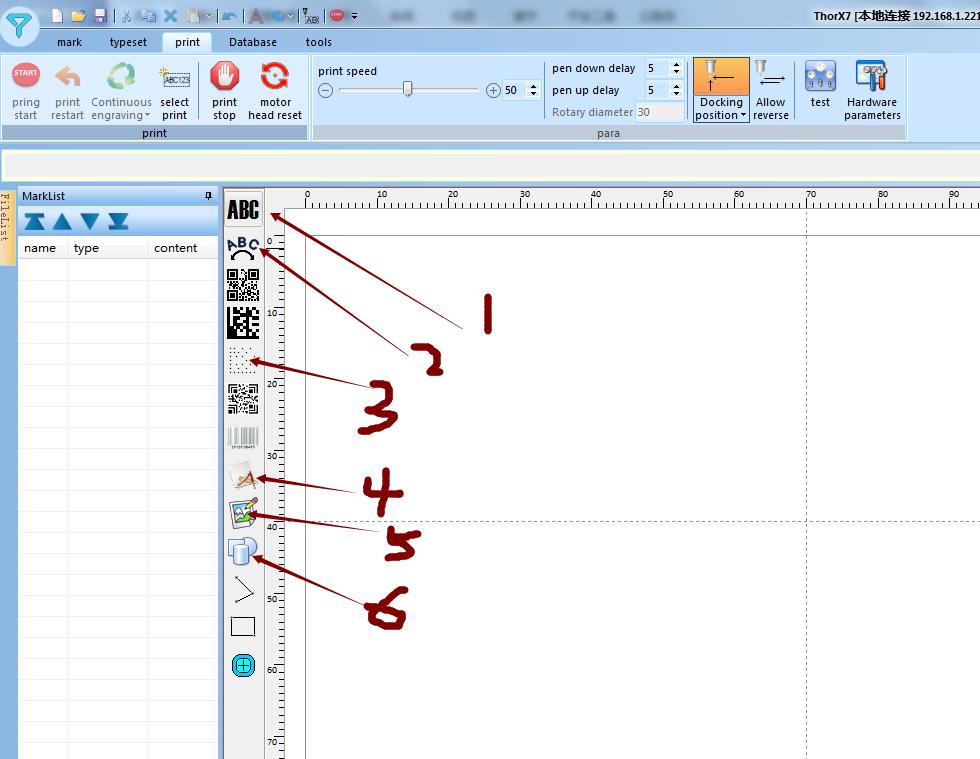

Now you can use it. 1,common letter and number.2,Curved text,3. dot marking,4,logo by other file.SLG or PLT file.5,usually is very good in this,becasue it is JPg pic. 6,drawing symbol.
